수냉식 고온 냉동식 드라이어 WH 시리즈
에어 드라이어

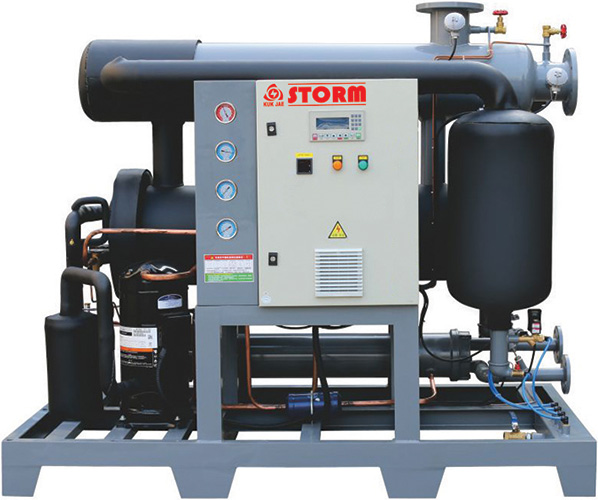

수냉식 고온 냉동식 드라이어 WH 시리즈
수냉식 고온 냉동식 드라이어 WH 시리즈
Specification
| 정격 입구 압력 | 0.7MPa (0.6~1MPa) | 정격 입구 온도 | 80℃ 이하 |
|---|---|---|---|
| 노점 온도 | 2~10℃ | 외기 온도 | 45℃ 이하 |
| 압력 손실 | 0.02MPa 이하 | 냉각 방식 | 수냉식 |
| 냉각수 압력 | 0.2~0.4MPa | 냉각수 온도 | 31℃ 이하 |
| 냉매 | R22 | 설치 | 바닥이 안정되고, 실내 공간이 1.5미터 이상인 곳 |

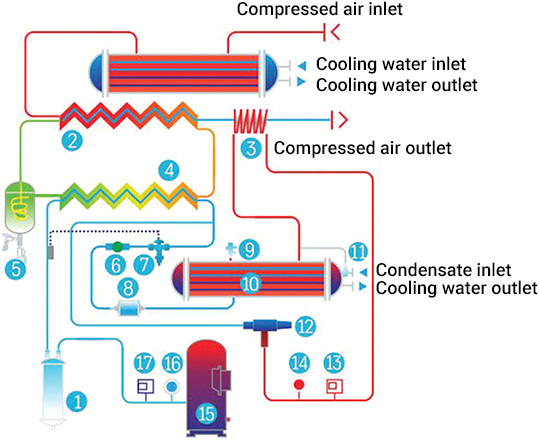

Schematic Diagram
- refrigerant gas-liquid separator
- heat exchanger
- heat recovery unit
- evaporator
- cyclone separator
- windows
- thermostatic expansion valve
- drying filter
- water condenser safety valve
- water-cooled condenser
- flow regulating valve
- hot gas bypass valve
- high voltage protective switch
- refrigerant high voltage meter
- refrigerant compressor
- refrigerant low pressure meter
- low voltage protective switch
Technical Parameter List
| Model | Processing capacity | Supply voltage | Rated power | Cooling water volume | Cooling water interface | Air inlet and outlet | Equipment weight | Outline size |
|---|---|---|---|---|---|---|---|---|
| N㎥/min | V/Hz | kW | T/h | kg | L×W×H | |||
| KAD 75WH | 10.5 | 220/60 | 1.9 | 5.6 | G1˝ | G2˝ | 205 | 1250×650×1150 |
| KAD 100WH | 13.5 | 380/60 | 2.4 | 6.2 | G1˝ | G2½˝ | 255 | 1350×650×1300 |
| KAD 120WH | 17.0 | 380/60 | 2.4 | 7 | G1˝ | G2½˝ | 280 | 1350×650×1300 |
| KAD 150WH | 21.5 | 380/60 | 3.9 | 7.5 | G1˝ | G3˝ | 345 | 1450×700×1430 |
| KAD 180WH | 25.0 | 380/60 | 3.9 | 8.2 | G1˝ | G3˝ | 395 | 1450×700×1430 |
| KAD 200WH | 28.5 | 380/60 | 4.7 | 9.0 | G1½˝ | DN80 | 530 | 1550×850×1600 |
| KAD 250WH | 32.0 | 380/60 | 4.7 | 9.6 | G1½˝ | DN80 | 580 | 1550×850×1600 |
| KAD 300WH | 37.0 | 380/60 | 6.2 | 11.5 | G1½˝ | DN100 | 680 | 1700×850×1710 |
| KAD 350WH | 41.5 | 380/60 | 6.2 | 11.5 | G1½˝ | DN100 | 750 | 1700×850×1710 |
| KAD 400WH | 45.0 | 380/60 | 7.7 | 14.0 | G1½˝ | DN125 | 800 | 1900×950×1850 |
| KAD 450WH | 50.0 | 380/60 | 7.7 | 14.0 | G1½˝ | DN125 | 850 | 1900×950×1850 |
| KAD 500WH | 55.0 | 380/60 | 9.2 | 16.0 | G2˝ | DN125 | 910 | 2100×1000×1850 |
| KAD 550WH | 60.0 | 380/60 | 10.3 | 18.5 | G2˝ | DN125 | 950 | 1800×1950×1300 |
| KAD 600WH | 65.0 | 380/60 | 10.3 | 21 | G2˝ | DN125 | 1100 | 1850×2300×1330 |
| KAD 650WH | 70.0 | 380/60 | 10.3 | 22 | G2˝ | DN125 | 1140 | 1850×2300×1330 |
| KAD 700WH | 75.0 | 380/60 | 11.5 | 23 | G2˝ | DN125 | 1280 | 1860×2400×1400 |
| KAD 750WH | 80.0 | 380/60 | 11.5 | 24 | G2˝ | DN125 | 1350 | 1860×2400×1400 |
| KAD 800WH | 85.0 | 380/60 | 13.8 | 26 | G2˝ | DN125 | 1450 | 1900×2400×1420 |
| KAD 900WH | 95.0 | 380/60 | 16.7 | 15 | G2˝ | DN150 | 1600 | 1900×2450×1400 |
| KAD 1100WH | 110.0 | 380/60 | 18.3 | 16 | G2˝ | DN150 | 1700 | 1980×2450×1500 |
| KAD 1200WH | 120.0 | 380/60 | 20.6 | 17.5 | G2˝ | DN150 | 1800 | 1980×2450×1500 |
| KAD 1400WH | 140.0 | 380/60 | 21.8 | 19 | G2˝ | DN200 | 1950 | 2050×2700×1550 |
| KAD 1600WH | 160.0 | 380/60 | 26 | 23 | G2½˝ | DN200 | 2100 | 2123×2650×1550 |
The air handling capacity is greater than 55N㎥/min or special specifications, materials and temperature requirements. Please obtain technical information from our company or dealer.
The above data is for reference only. Subject to change without notice. Please contact us directly for other specifications.
